Description

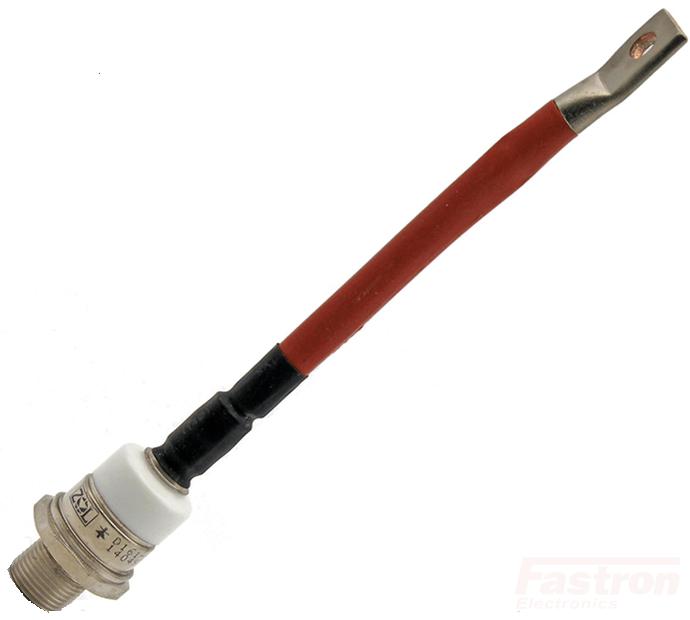

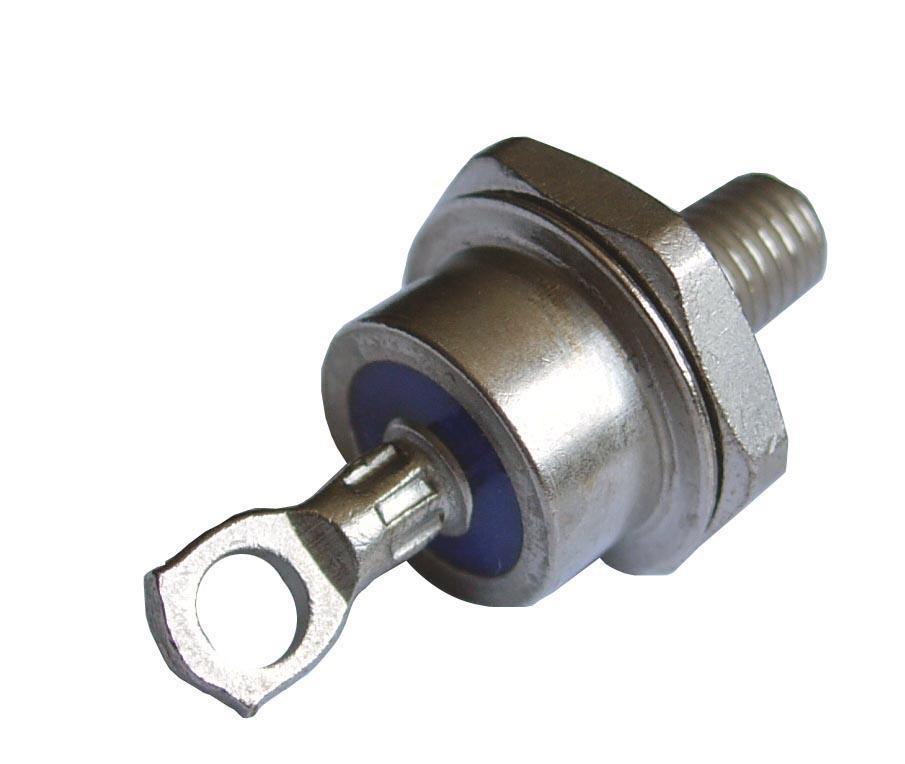

Westcode-IXYS-Littlefuse DSA17-16A, Avalanche Diode, 17 Amp, 1600V, 10/32"UNF, Anode stud

Features

Full blocking capability over wide temperature range
Hermetic metal case with glass insulator
Threaded stud

Applications

Power Supplies
Uncontrolled Rectifiers
Oil Cooled Circuits
Battery Chargers

Specification

Westcode-IXYS-Littlefuse Part Number	DSA17-16A
Vrrm	1600V
Avalanche Diode Configuration	Anode Stud
IF(av) @ 85 Deg C	17 Amp
Itsm	370 Amp
VF(to)	0.85V
Tj(max)	150°C
rF	10mΩ
Termination Style (No Tail)	2.2mm Solder Tab
Termination Style (Stud)	10 - 32 UNF
Tail Length to Stud	N/A
R th(j-c)	0.85°C/W
R th(c-h)	0.25°C/W
Weight	12g
Mounting Torque	2 Nm
Factory Pack Qty	50
Country Of Origin	USA
IXYS-Westcode Headquarters	USA

Datasheet

Obsolescence

This part is, Obsolete . for replacmement
