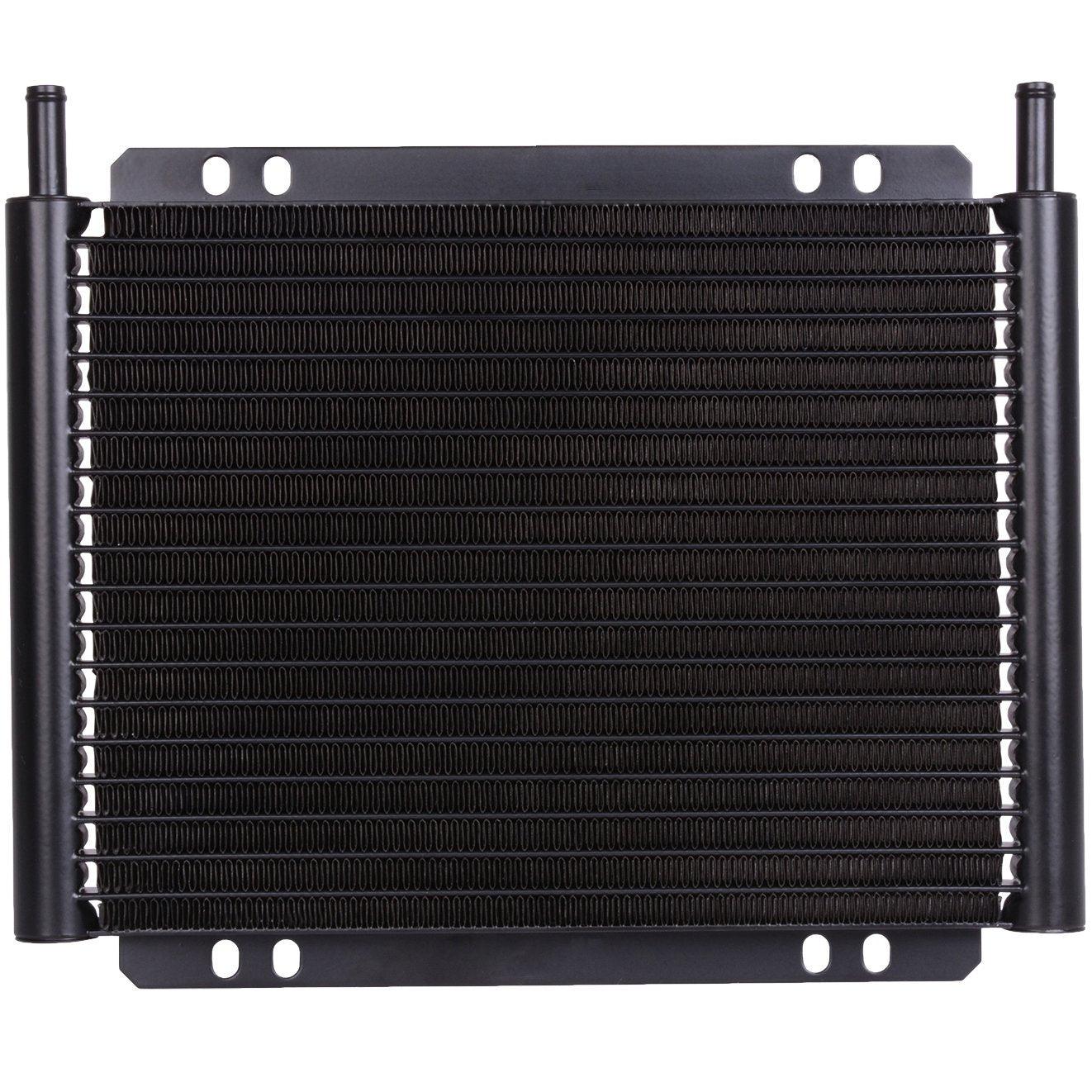

Fluid Cooler:

• Universal 23 row plate and fin aluminum heavy duty transmission cooler kit.
• Extend transmission life by helping prevent heat-related transmission failures.
• Perfect for medium to full-size cars, trucks and SUVs with occasional towing.
• 7/8" wide plates, 3/4" embossed turbulators which maximizes heat transfer.
• Dimensions: 0.75" x 9.5" x 11" with 3/8" hose barb inlets, GVW 24000 lbs.

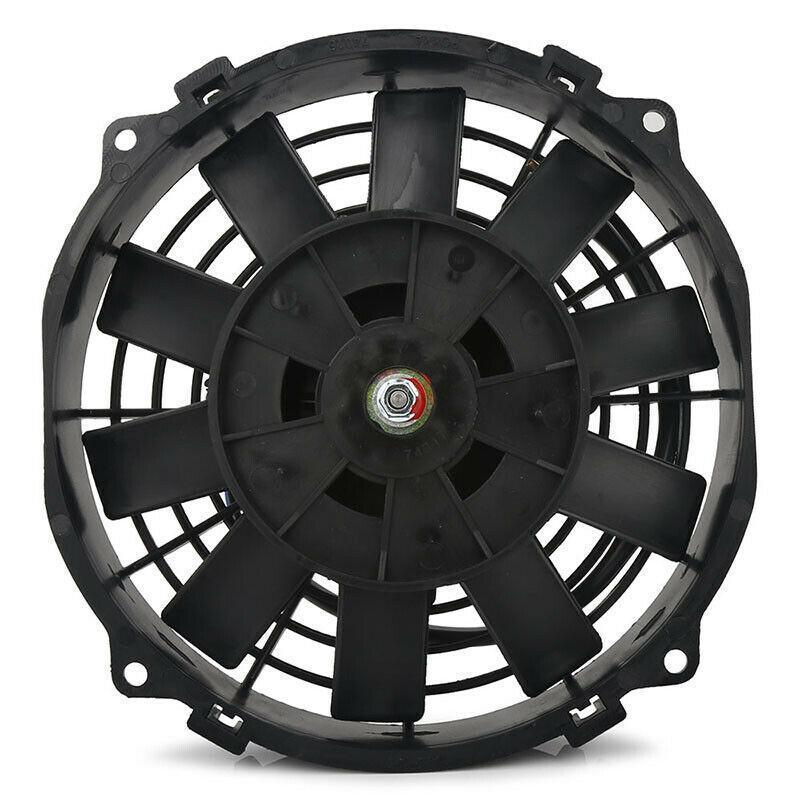

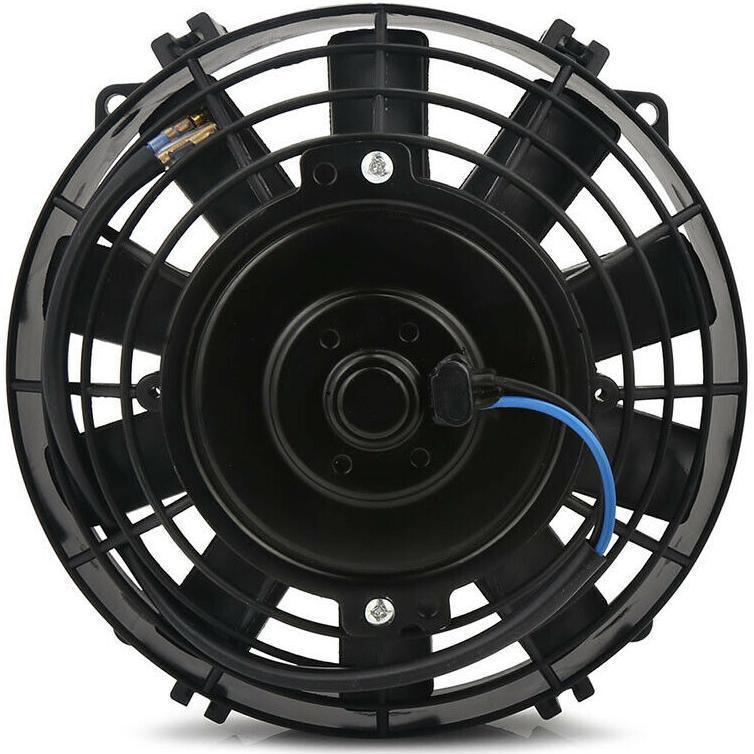

Electric Fan:

• Universal 12 volt high performance 8" inch small electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as an air puller to be on the inside and pull air through.

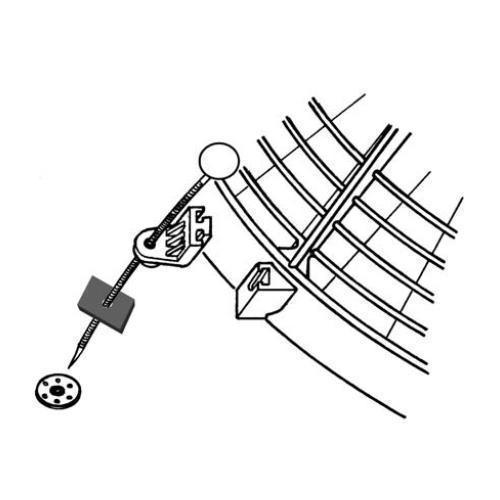

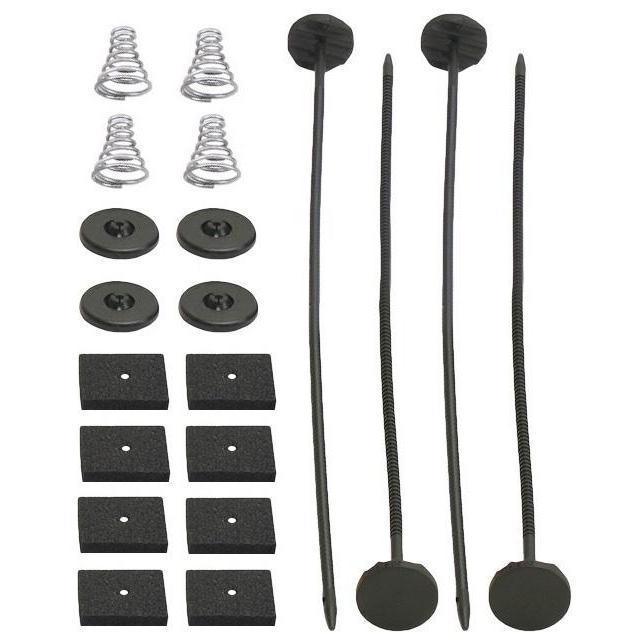

• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.

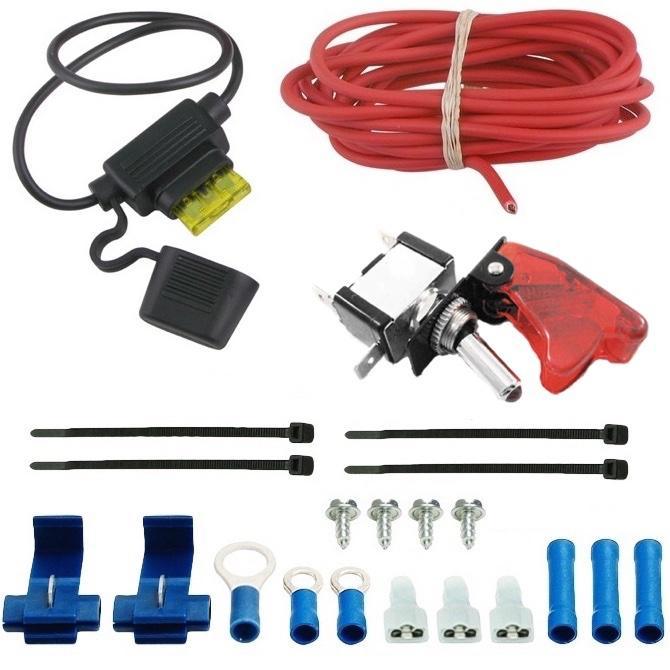

Wiring Kit:

• Universal electric fan or automotive accessory wire harness kit.
• Safely powers one 12 volt fan or auto accessory without splicing.

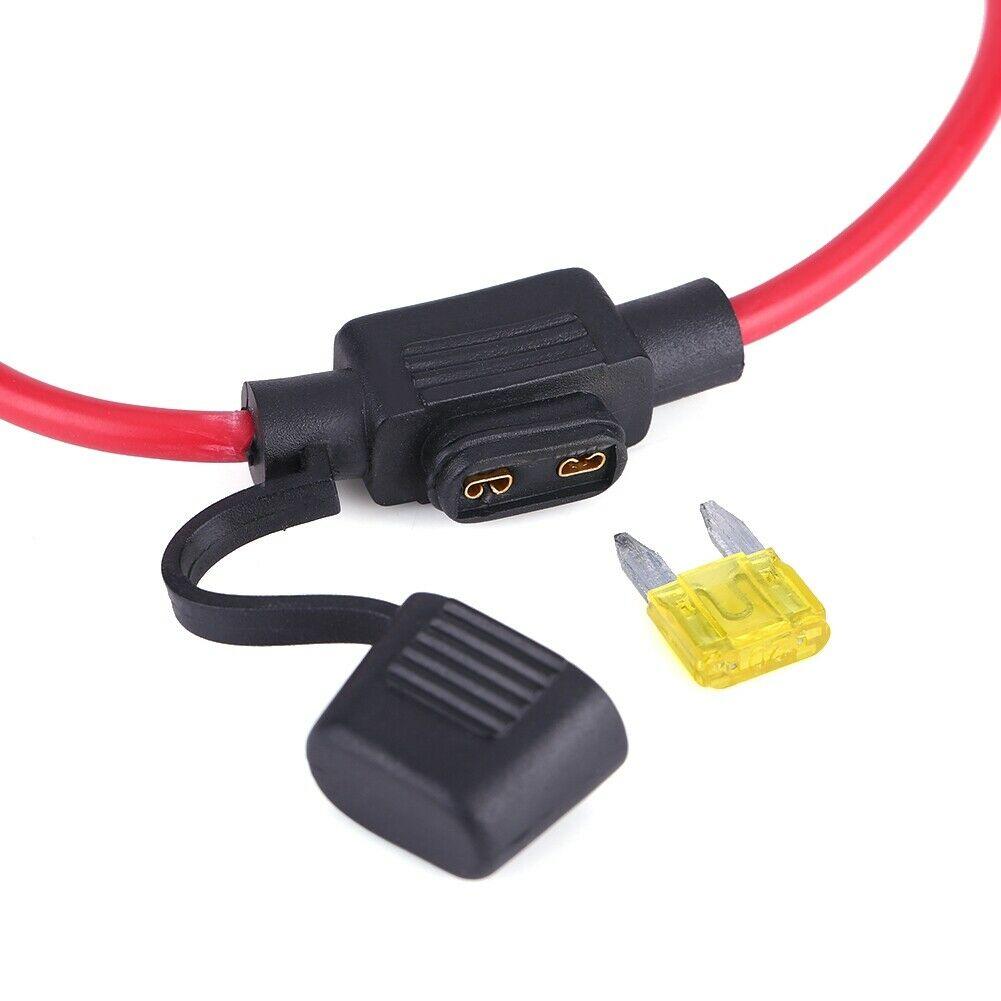

• Maximum 20 amp continuous draw with in-line fuse protection.
• Standard 7 feet of 14AWG size wiring allows mounting flexibility.
• Installation instructions and all pictured components included.
