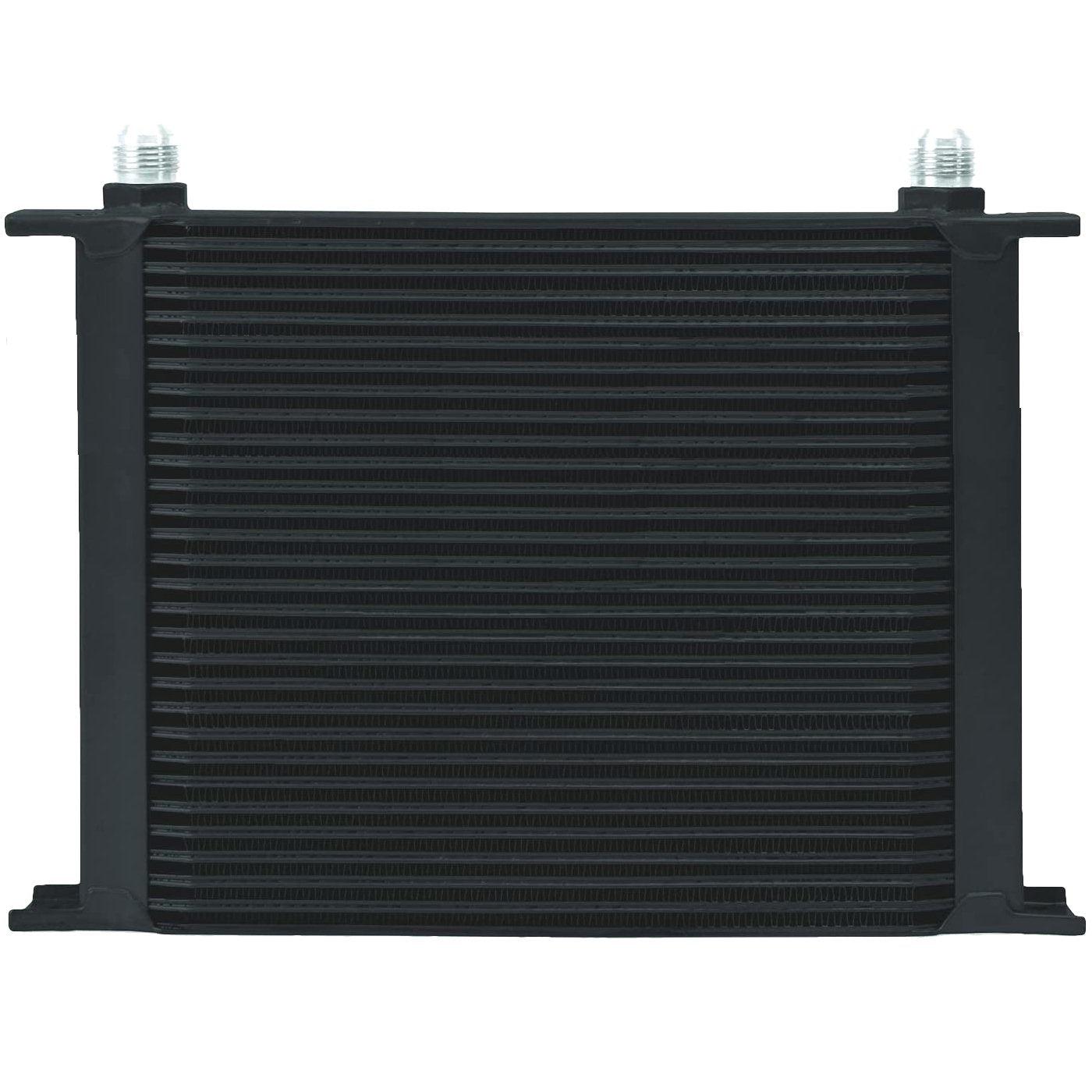

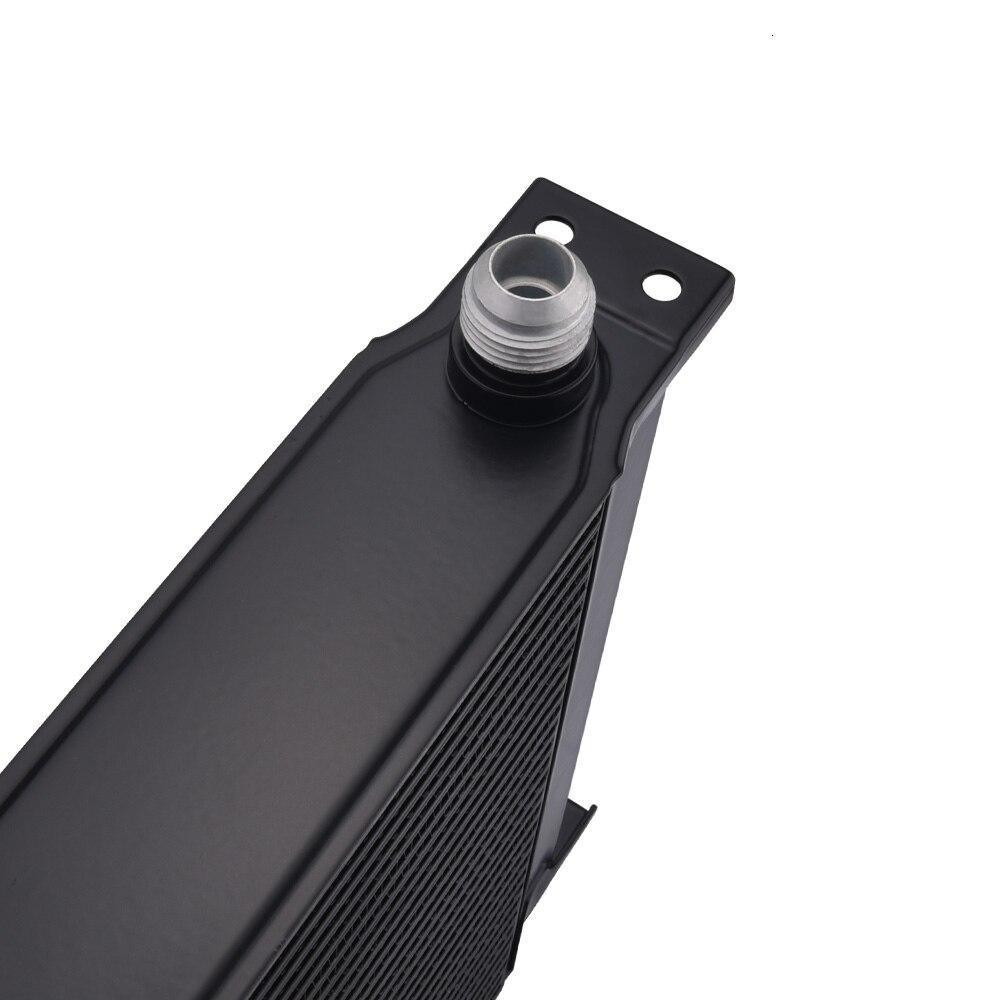

Fluid Cooler:

• 30 stacked plate black aluminum heavy duty engine transmission cooler kit.
• Minimal pressure drop and to be used for engine, transmission or fuel cooling.
• Furnace brazed aluminum construction with 4 integrated mounting brackets.
• Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
• Dimensions: 2" x 9.8" x 13" with AN hose fittings and 50000 BTU per hour.
• Oil cooler full capacity: 0.74L; Test pressure: 116psi; Burst pressure: 232psi.

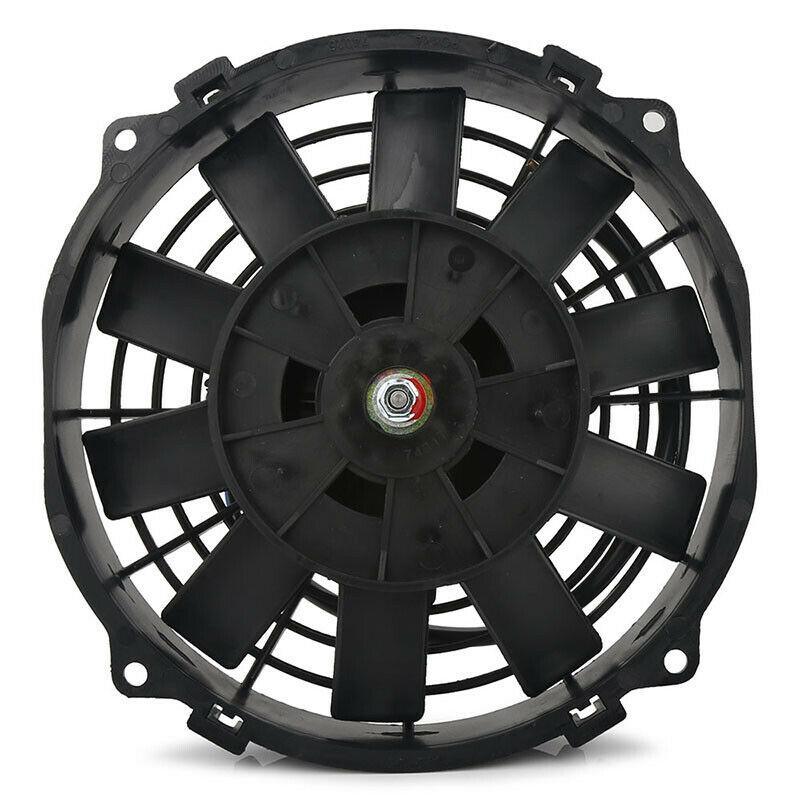

Electric Fan:

• Universal 12 volt high performance 9 inch slim electric cooling fan.
• Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
• Configured as an air puller by default or reversible to an air pusher.

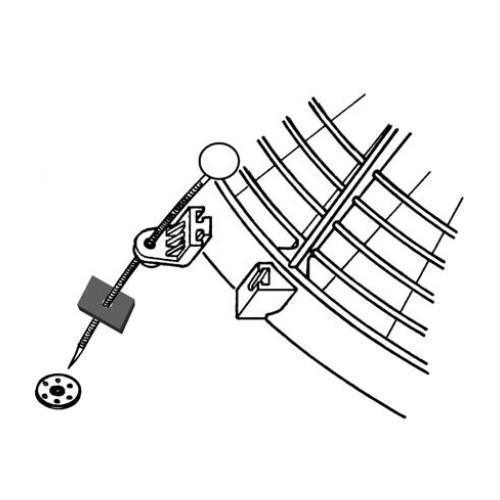

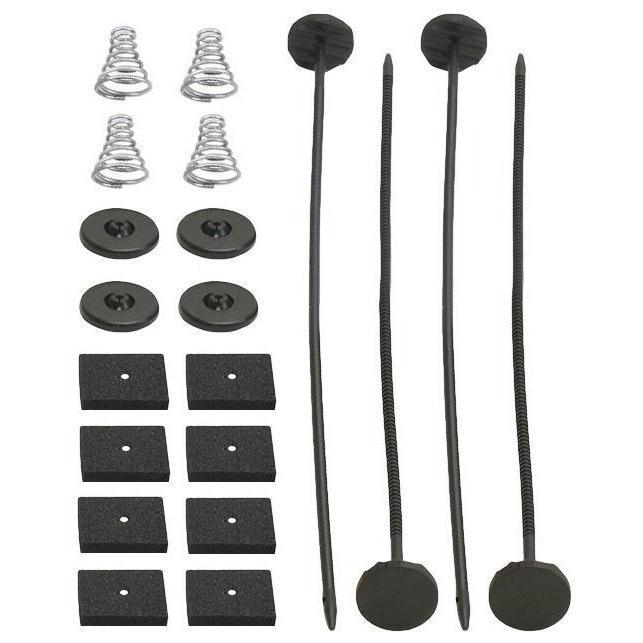

• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.

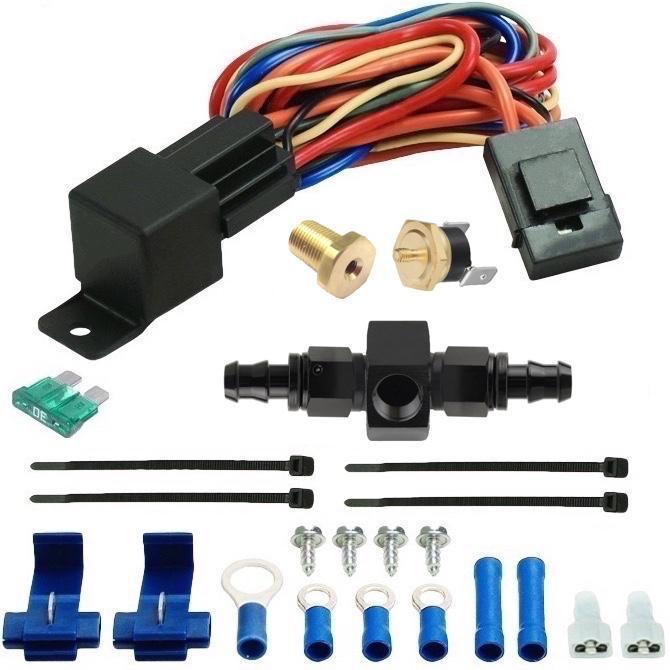

Wiring Kit:

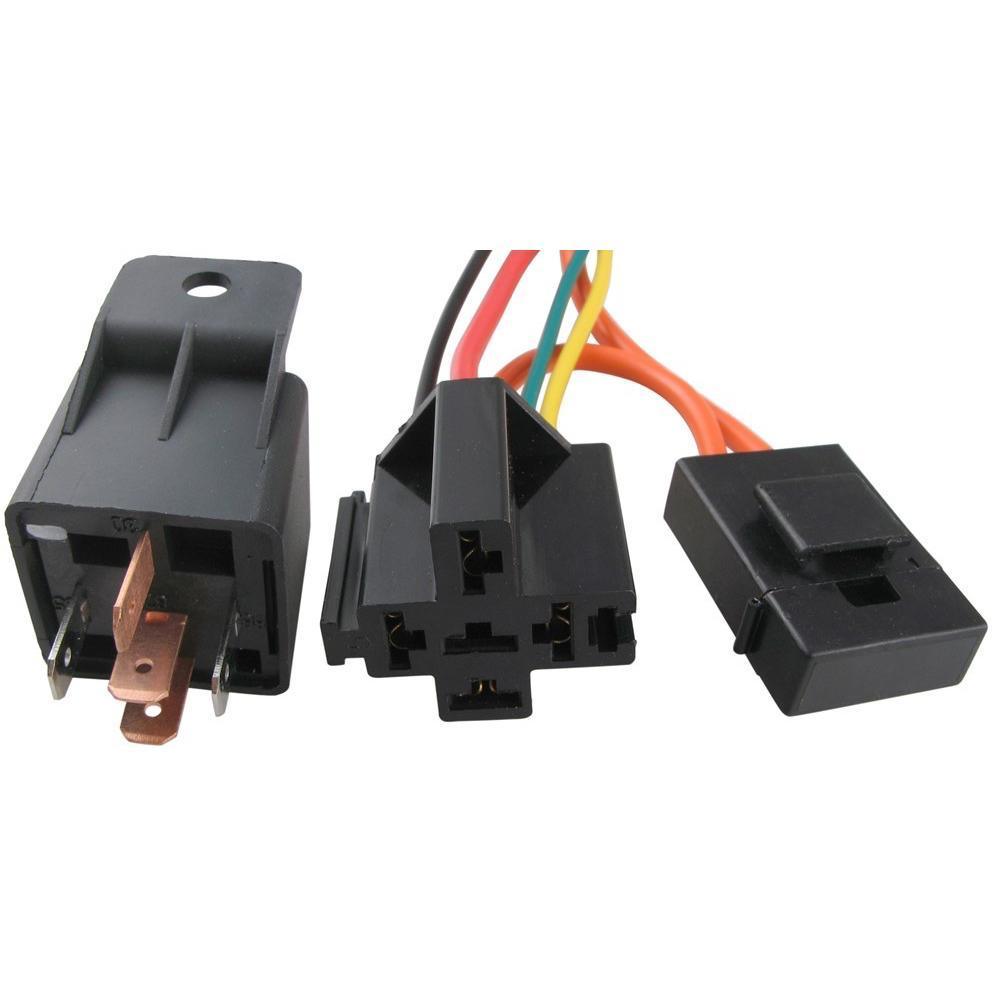

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Fitting:

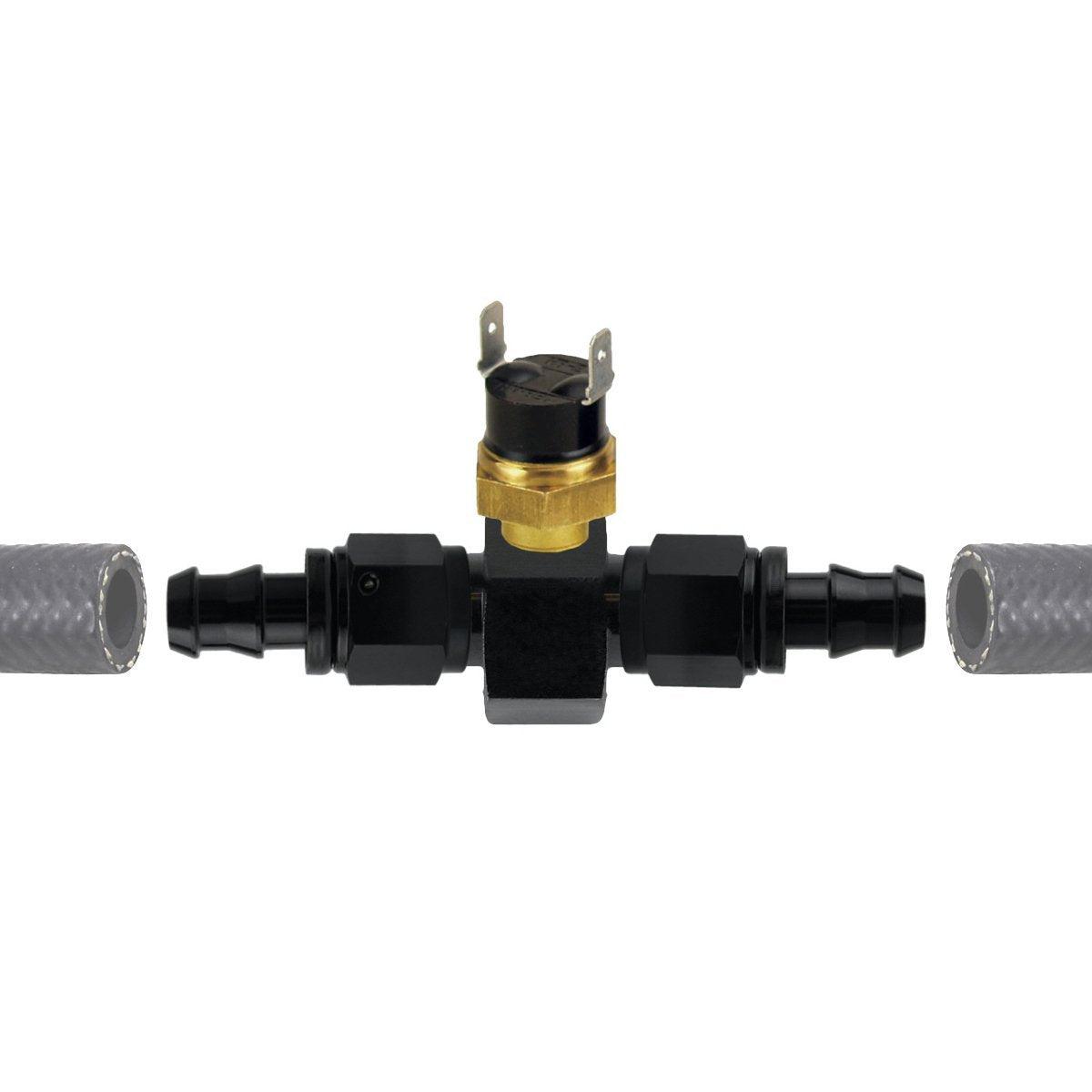

• Universal AN in-line electric fan thermostat temperature switch kit.
• 1/8" inch NPT brass thread-in probe and dual pin disconnect switch.
• Preset to power fan or 12v accessory at the selected temperature.
• Anodized aluminum barbed straight push-on hose fitting adapters.
• Measures temp of any liquid including oil, water and coolant fluid.
