CDSR 0.7 NPDT RCD Transducer for 3 Phase AC Wallbox - 6mA DC & 30mA AC Tripping (32A IP Rating, 3.3VDC Supply) - Perfect for EV Charging Stations & Industrial Power Protection

$37.34

$67.9

Safe 45%

CDSR 0.7 NPDT RCD Transducer for 3 Phase AC Wallbox - 6mA DC & 30mA AC Tripping (32A IP Rating, 3.3VDC Supply) - Perfect for EV Charging Stations & Industrial Power Protection

$37.34

$67.9

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

6 people viewing this product right now!

SKU: 45414665

Guranteed safe checkout

Description

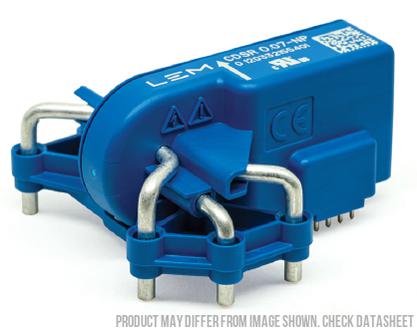

CDSR 0.7-NPDT, O/L RCD transducer for AC Wallbox with 6mA DC and 30 mA AC tripping (Ip 32 A) , Ip = 32 Amp, 3.3VDC supply

Features

3 Phase, DC & AC RCD current transducer using a flux-gate principle
PCB mounting
3.3VDC power supply
Bistream Delta Sigma Modulator Output
Current Detection Digital Output
Isolated plastic case recognized
according to UL94-V0.

Advantages

Small size
Wide Aperture
Bandwidth : DC and 10Hz
Response time better than 1 ms
Cost effective, compact alternative to classical RCDs (Residual Current Device)

Applications

Electrocution Protection
1st human contact protection of PV arrays
Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter)

Application Domains

Industrial

Specification

LEM Part Number	CDSR 0.7-NPDT
Technology	Open Loop Hall Effect
ROHS	Yes
Supply Voltage	+/-15VDC
Load Current (RMS + DC)	32Amp
Output	Delta Sigma Modulator, Trigger Outut
Isolation	5.4kV
Bandwidth	DC-10Hz
Mounting Style	PCB Mount
Operating Temperature Range	-40°C / 105°C
Accuracy	N/A
Aperture	N/A
Unit Weight	28g
Factory Pack Qty	10

Datasheet
