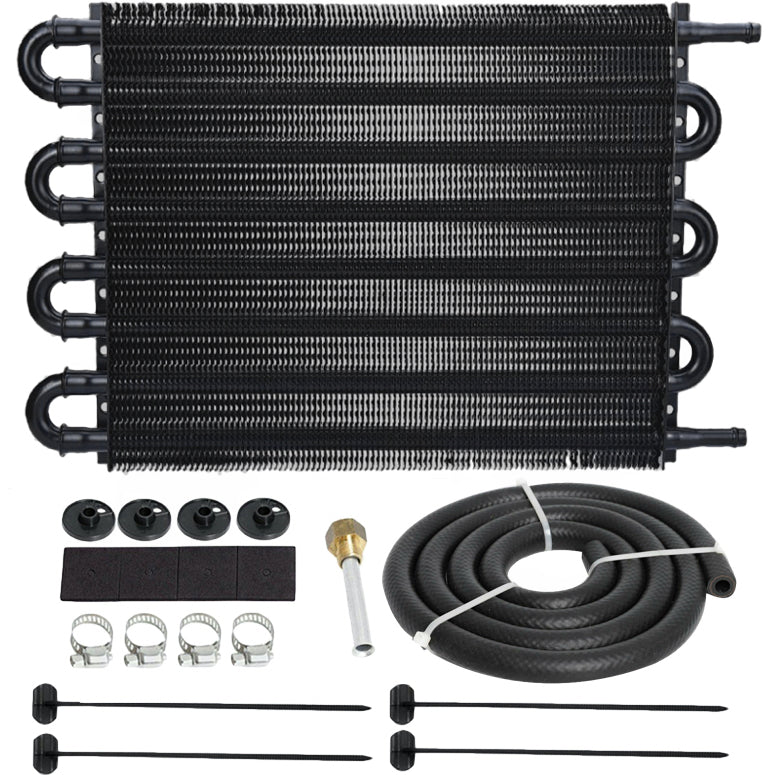

Fluid Cooler:

• Universal 8 row tube and fin all-aluminum heavy duty transmission cooler kit.
• Extend transmission life by helping prevent heat-related transmission failures.
• Perfect for highly-stress full-size car, truck and RV automatic transmissions.
• High efficiency turbulation and ultrasonically soldered for the best reliability.
• Dimensions: 0.75" x 10" x 15.87" with 3/8" hose barb inlets, GVW 26000 lbs.

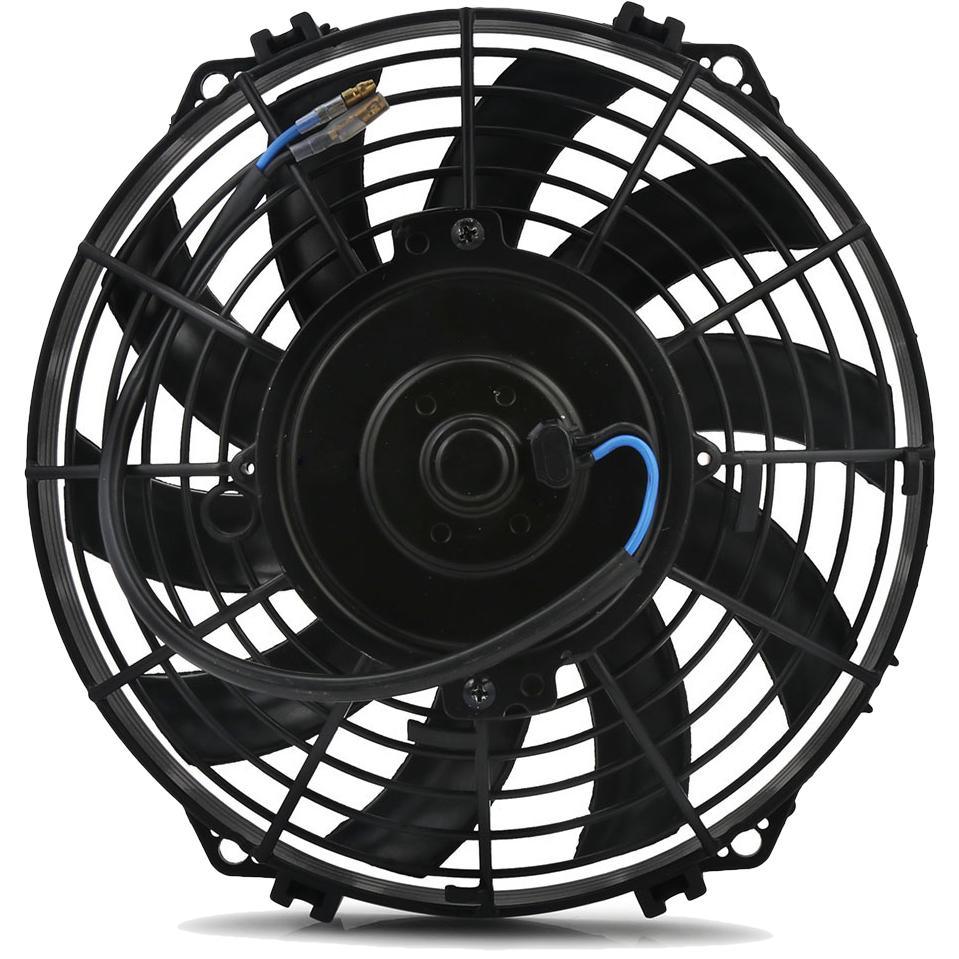

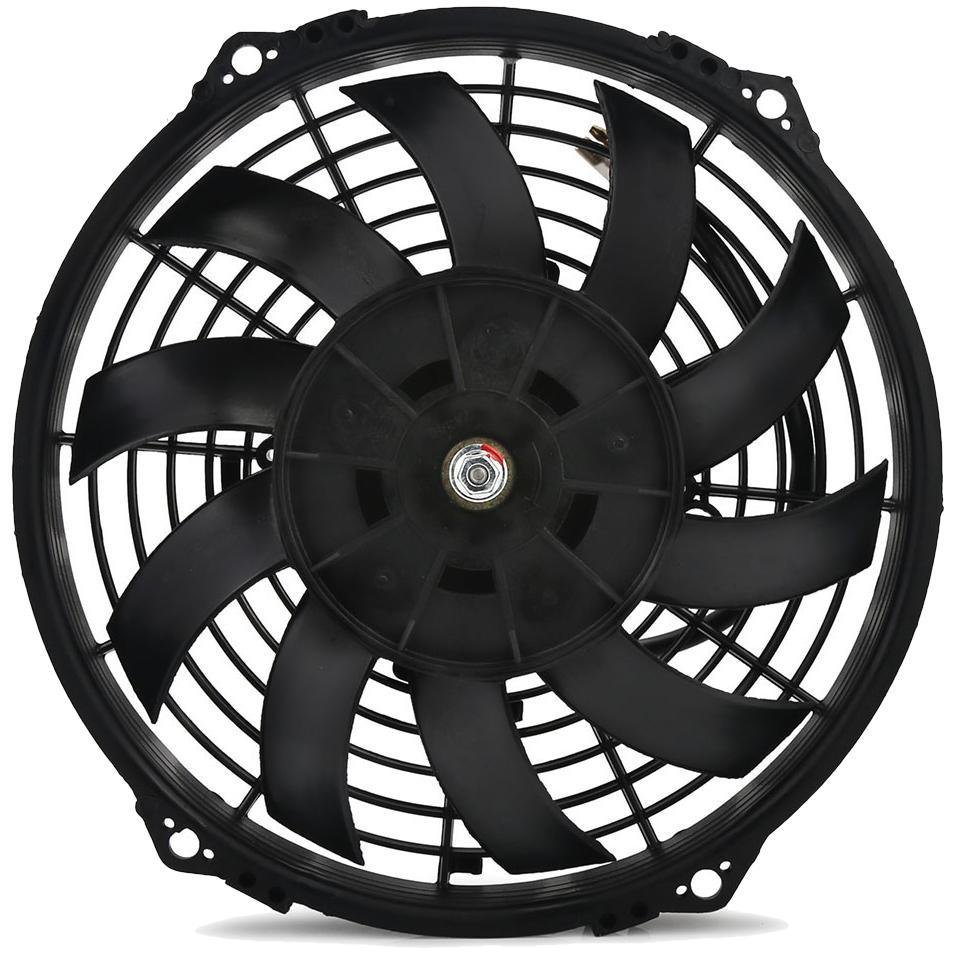

Electric Fan:

• Universal 12 volt high performance 9" inch slim electric cooling fan.
• Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
• Configured as an air puller by default or reversible to an air pusher.

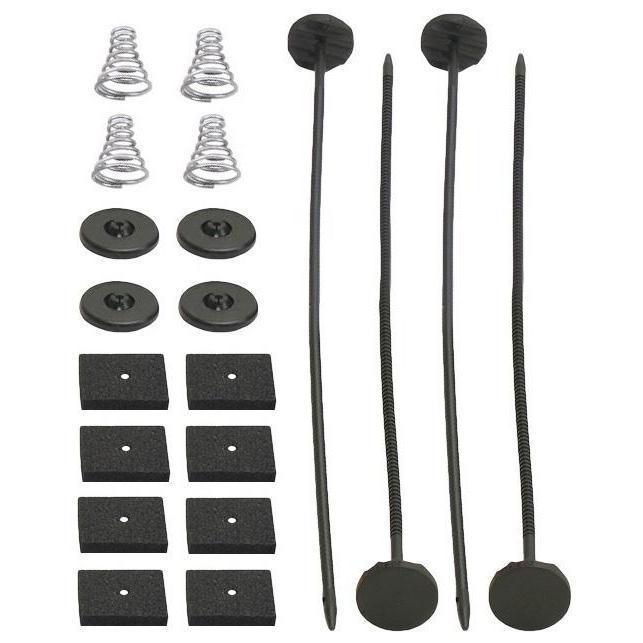

• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.

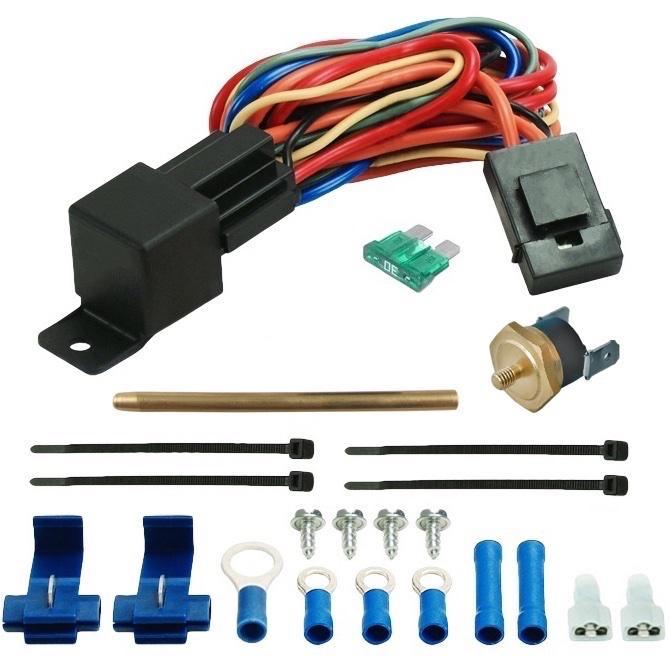

Wiring Kit:

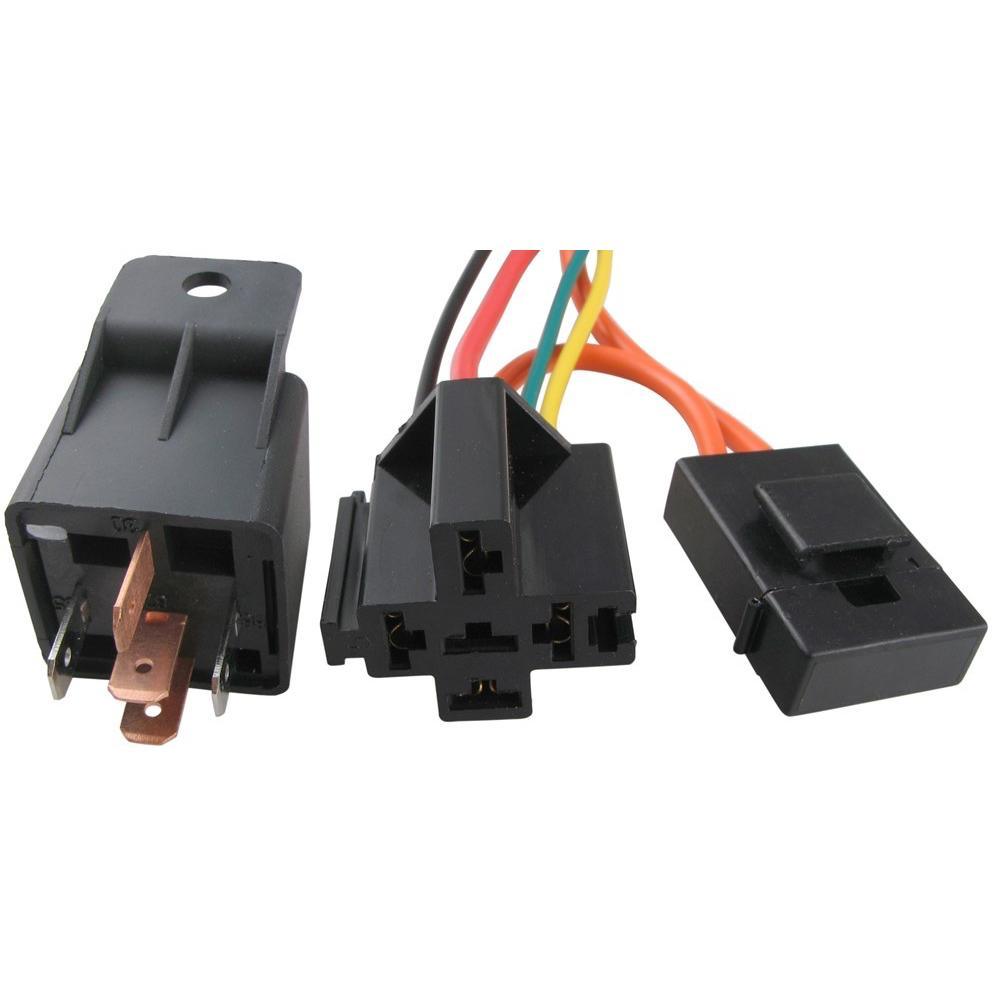

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Thermostat:

• Universal dual pin electric cooling fan powering thermostat switch.
• Solid brass push-in fin probe temperature sensor can be cut to size.
• Preset to power fan or 12v accessory at the selected temperature.
• Probe pins the switch to radiator, engine or transmission cooler fins.
• Measures temp of auto liquids including oil, water and coolant fluid.
