IEC 320 C14 Panel Mount Power Entry Connector Receptacle - Male Blades, Snap-In Module for Electronics & Appliances | Perfect for Servers, Power Supplies & Industrial Equipment

$6.67

$12.14

Safe 45%

IEC 320 C14 Panel Mount Power Entry Connector Receptacle - Male Blades, Snap-In Module for Electronics & Appliances | Perfect for Servers, Power Supplies & Industrial Equipment

$6.67

$12.14

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

18 people viewing this product right now!

SKU: 71675000

Guranteed safe checkout

Description

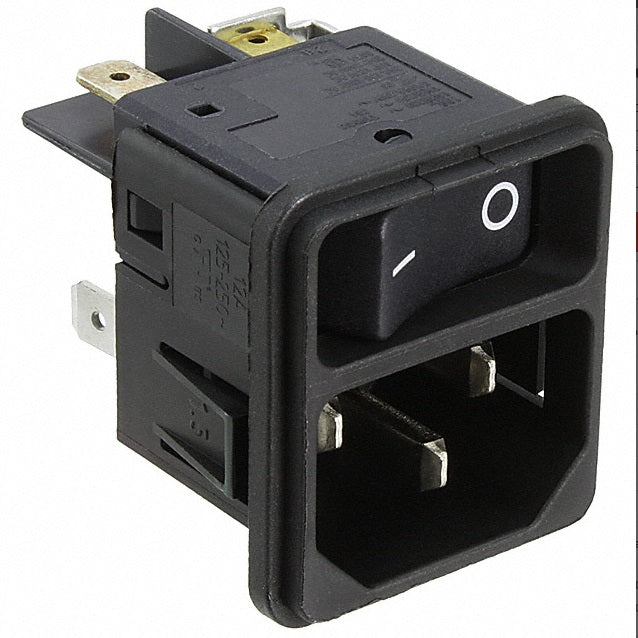

Schurter DC11.0001.401, IEC Inlet/Power Entry Connector Receptacle, Male Blades - Module IEC 320 Panel Mount, Snap-In

Features

Panel Mount : Snap-in Mounting from Front Side
Appliance Inlet C14/M Plug acc to IEC 60320-1
Screw On Mounting
70 °C pin Temperature

Characteristics

UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I
Other Pin versions available on request
Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1

Specification

Schurter Part Number	DC11.0001.401
Rated Voltage	250V
Rated Current	10A (CE) 15A (UL/CSA)
Maximum Cable Diameter	10mm
Operating Temperature	-25°C to 70°C
Mounting	Wire Screw Mount/Outlet
Material	Thermoplastic, black, UL 94V-0
Termination Style	C14/M to Quick Connects
Weight	30g
Factory Pack Qty	1
Protection Class	From front side IP30 acc. to IEC 60529
Isolation	2kV
VDE/UL/CSA/CE/ROHS	Yes

Datasheet
