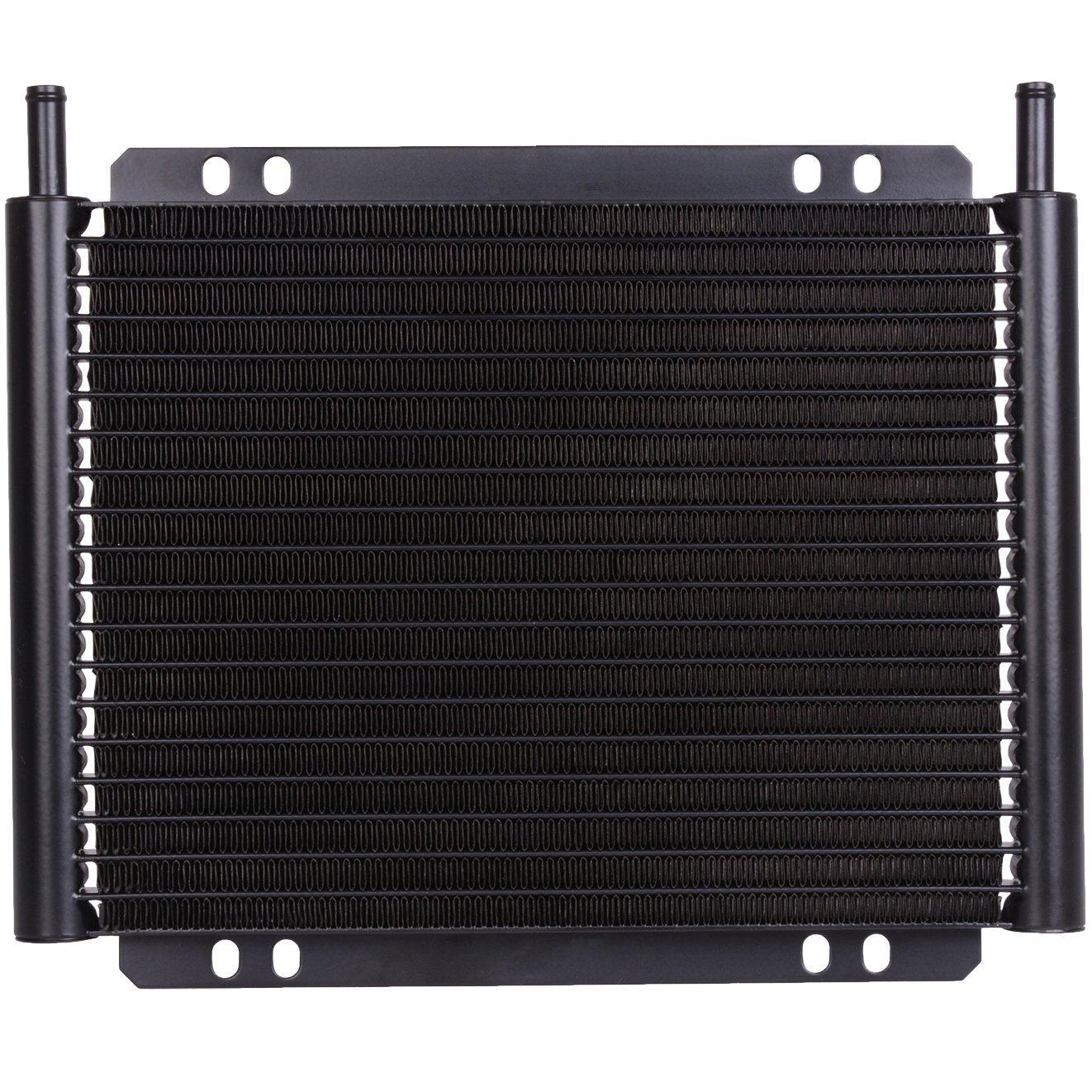

Fluid Cooler:

• Universal 23 row plate and fin aluminum heavy duty transmission cooler kit.
• Extend transmission life by helping prevent heat-related transmission failures.
• Perfect for medium to full-size cars, trucks and SUVs with occasional towing.
• 7/8" wide plates, 3/4" embossed turbulators which maximizes heat transfer.
• Dimensions: 0.75" x 9.5" x 11" with 3/8" hose barb inlets, GVW 24000 lbs.

Electric Fan:

• Universal 12 volt high performance 8" inch small electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as an air puller to be on the inside and pull air through.

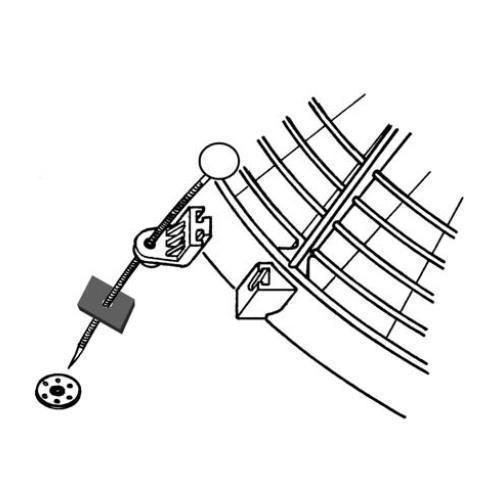

• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.

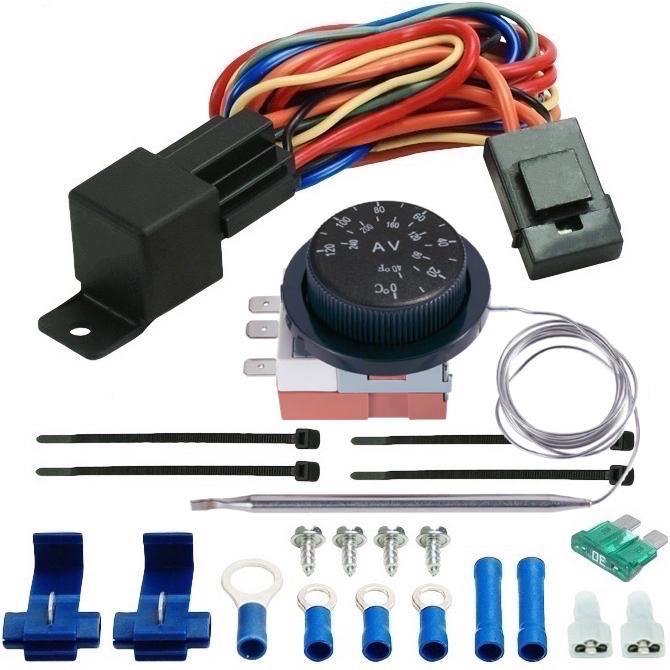

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

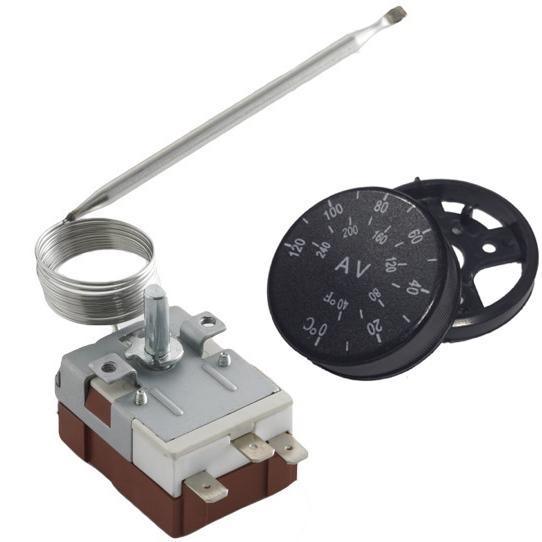

Thermostat:

• Universal adjustable automotive electric fan thermostat switch sensor.
• Turn-on range of 32-248'F with turn-off always set at 15 degrees less.
• 3 pin design allows for wiring as a normally open or closed circuit.

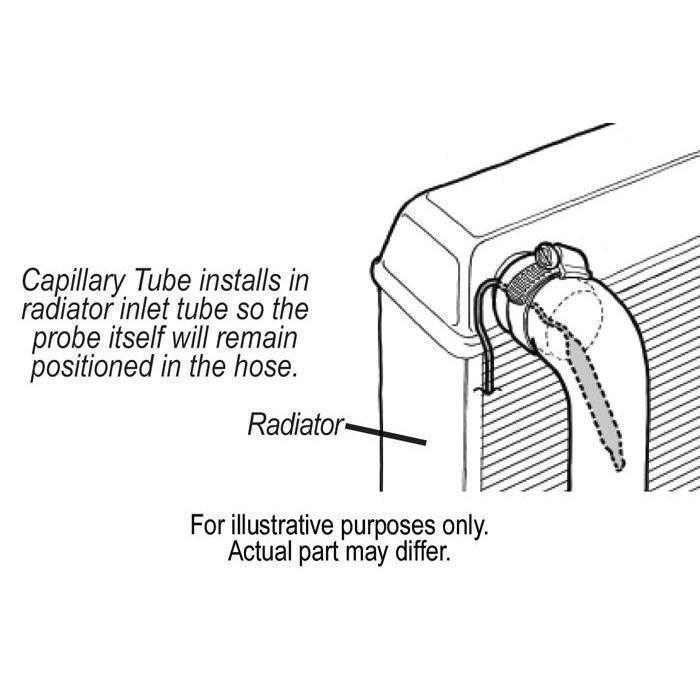

• Probe pushes between radiator fins or inserts into coolant hose line.
• Detailed install instructions, wiring diagram and hardware included.
