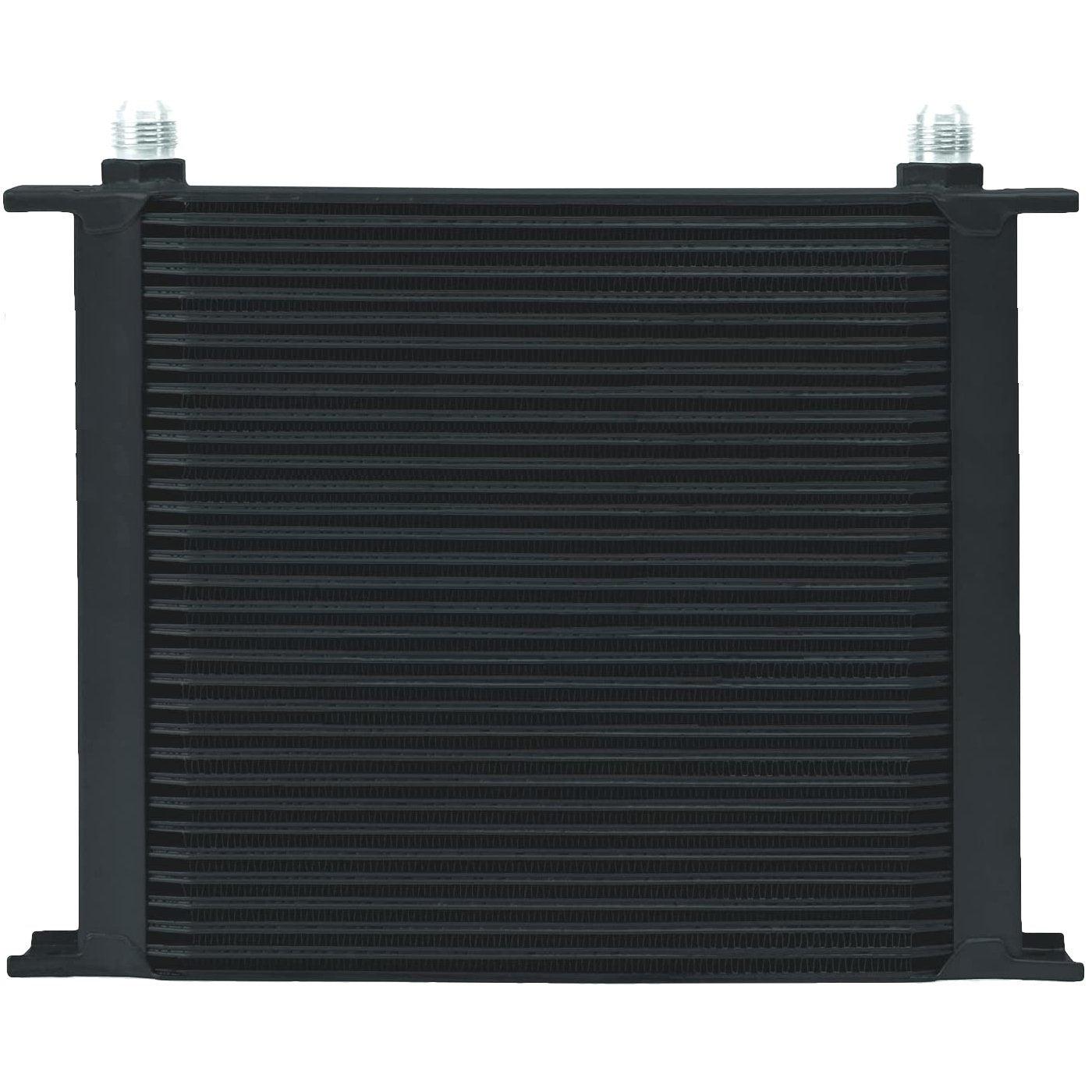

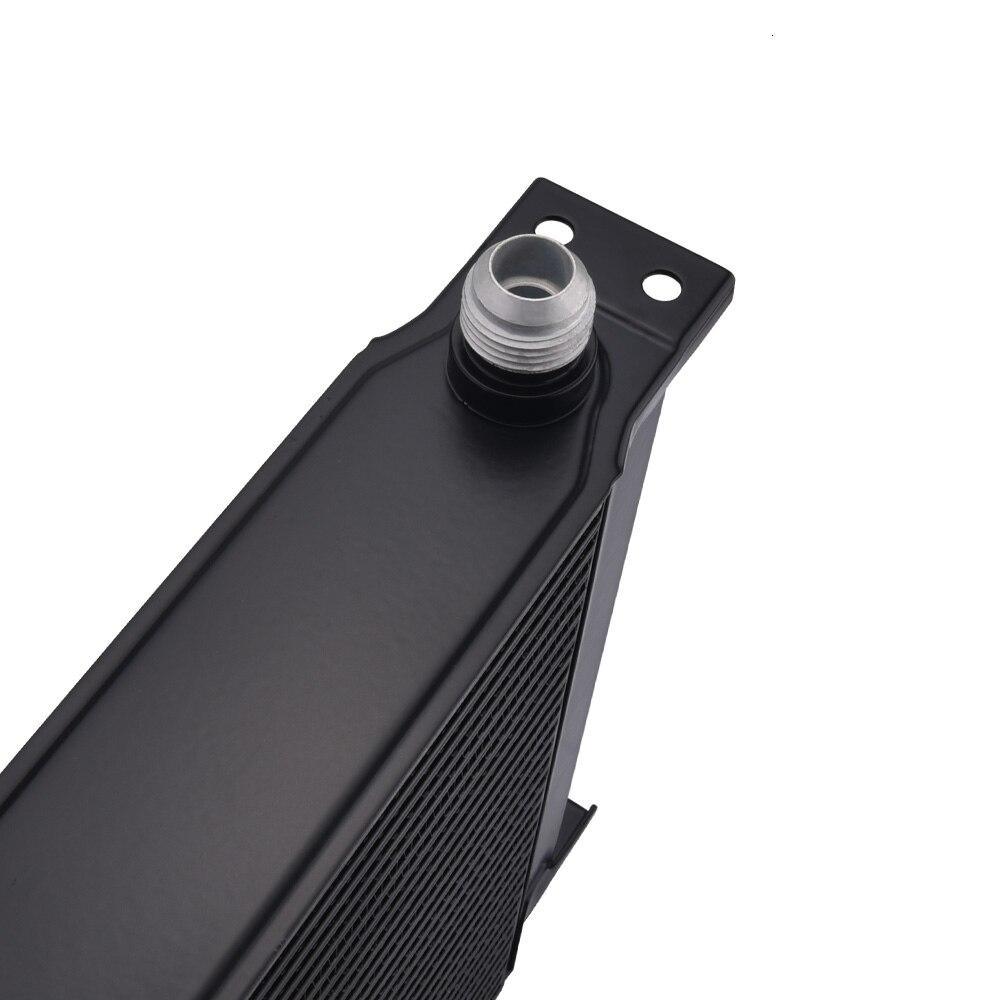

Fluid Cooler:

• Universal 34 stacked plate aluminum heavy duty engine transmission cooler.
• Minimal pressure drop and to be used for engine, transmission or fuel cooling.
• Furnace brazed aluminum construction with 4 integrated mounting brackets.
• Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
• Dimensions: 2" x 10.9" x 13" with AN hose fittings and 56000 BTU per hour.

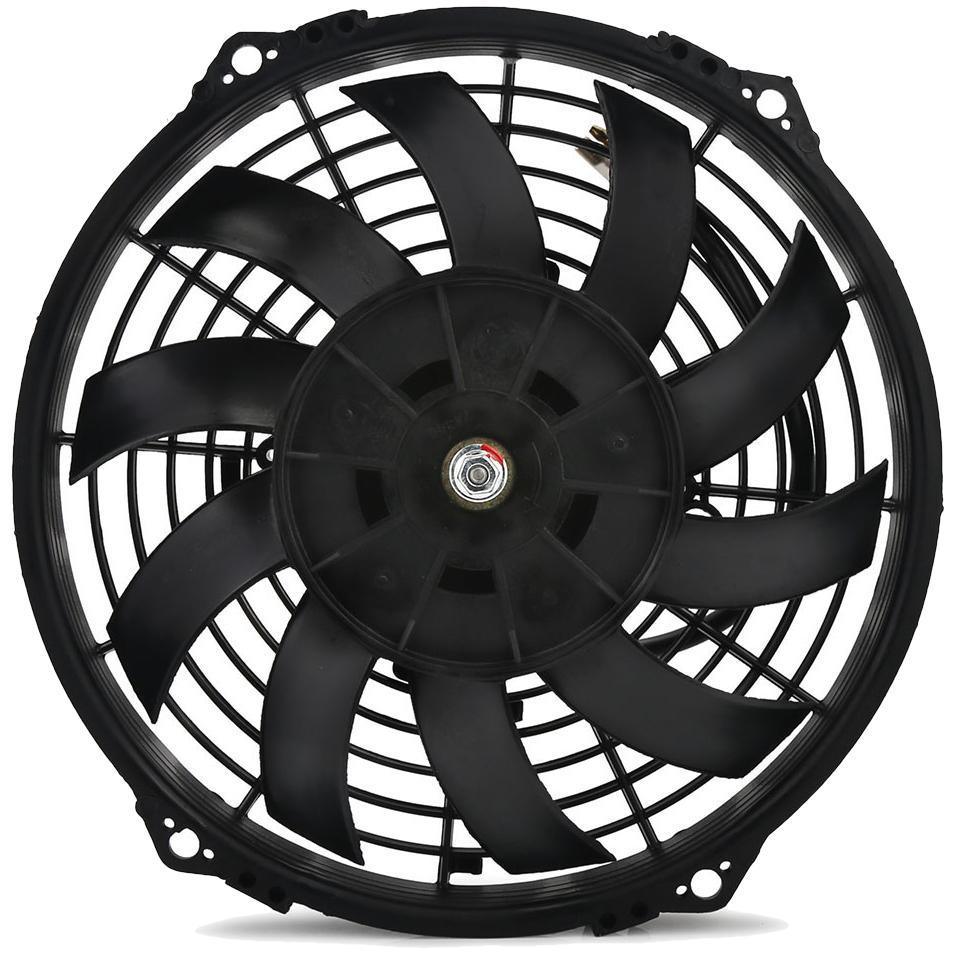

Electric Fan:

• Universal 12 volt high performance 9" inch slim electric cooling fan.
• Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
• Configured as an air puller by default or reversible to an air pusher.

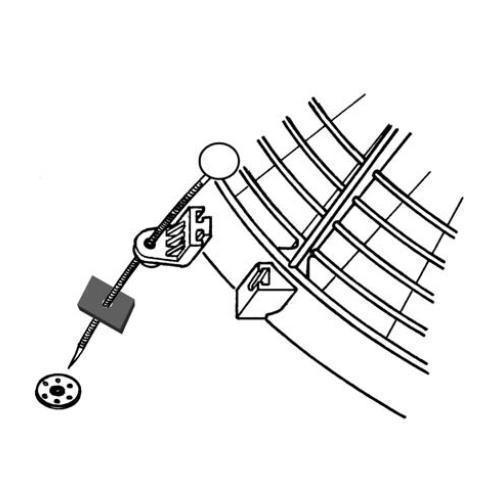

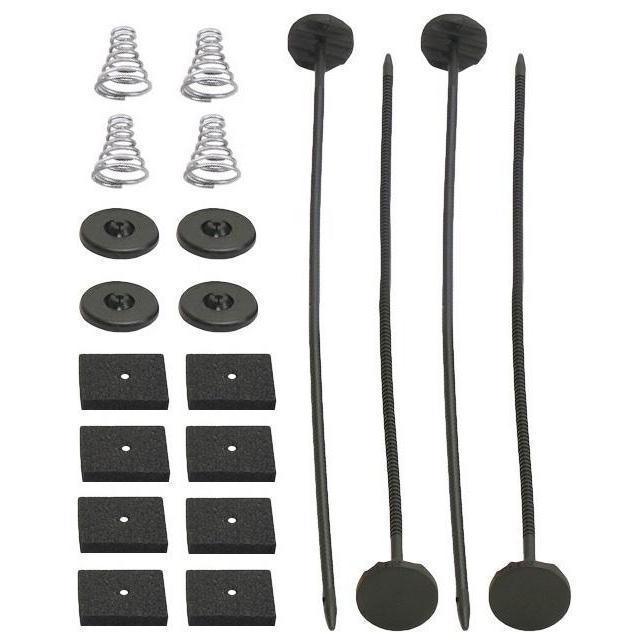

• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.

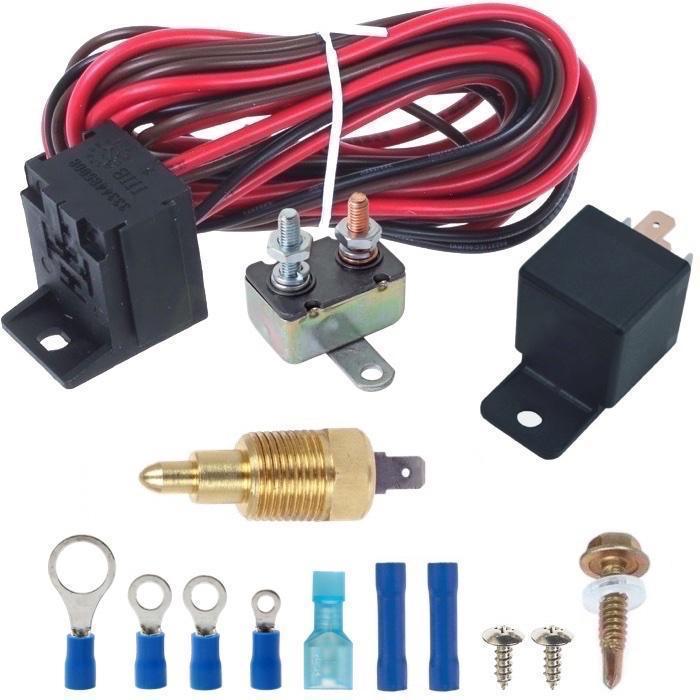

Wiring Kit:

• Universal automotive 12 volt electric fan switch relay wire harness.
• Safely powers one 12 volt cooling fan or accessory without splicing.
• Maximum continuous draw with 40 amp circuit breaker protection.
• Simple 4 pin relay 40A and 6 feet of 14AWG wiring allows flexibility.
• Installation wiring diagram and all pictured components included.

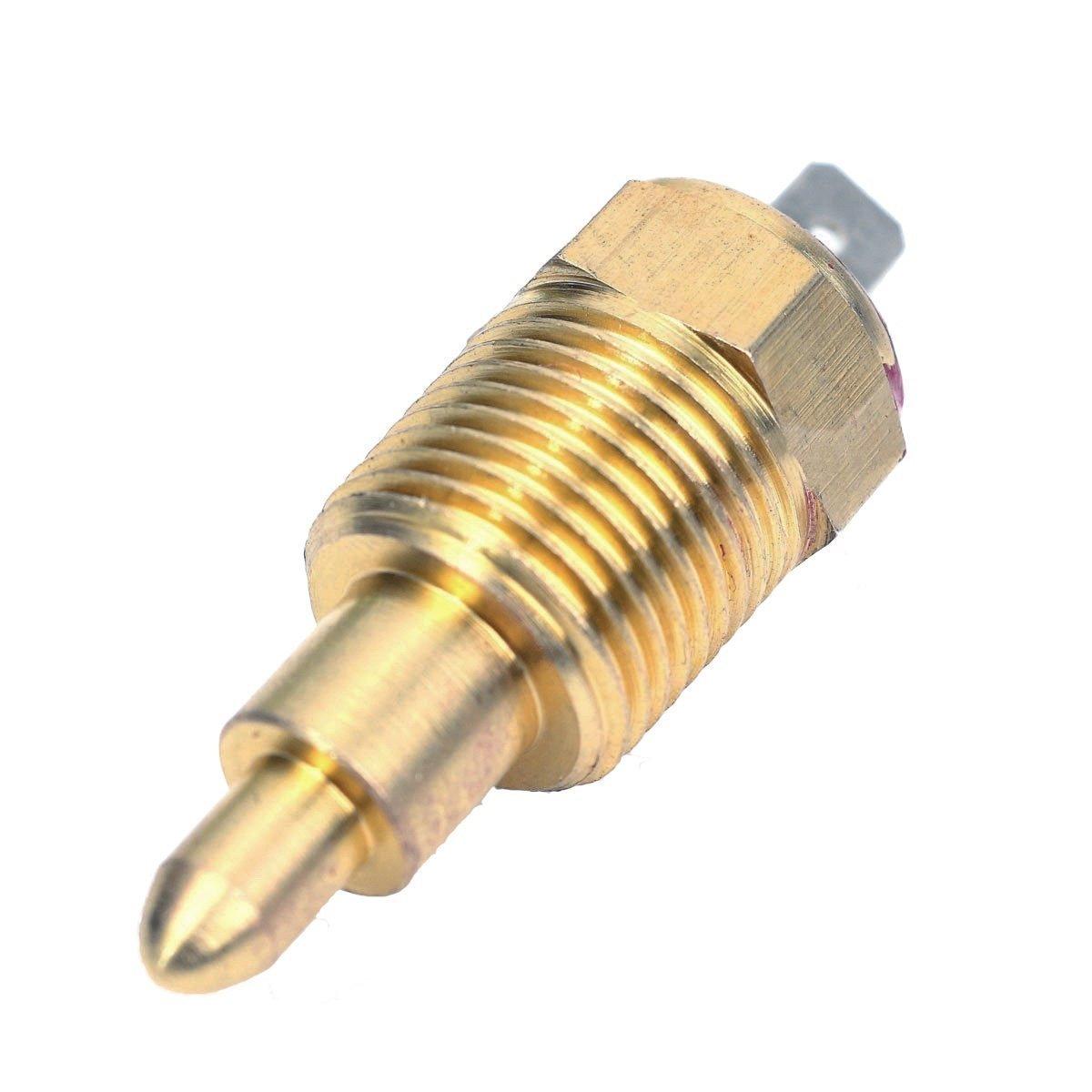

Thermostat:

• Universal single pin electric cooling fan grounding thermostat switch.
• Standard NPT sized solid brass thread-in temperature probe sensor.
• Preset to power fan or 12v accessory at the selected temperature.
• Threads into block port, radiator, engine cooler or tapped hose line.
• Measures temp of any liquid including oil, water and coolant fluid.
